LIGHT
PK 6500 PERFORMANCE
PK6500 Performance

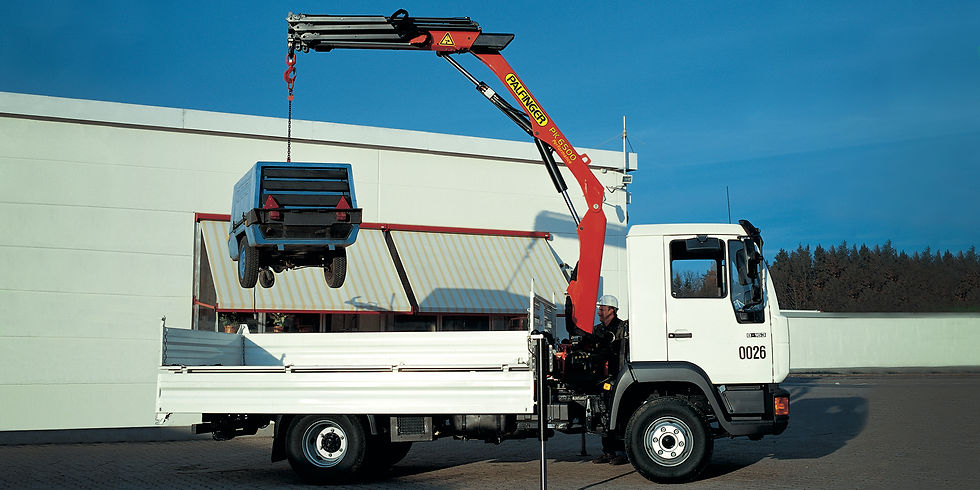

The new PK 6500 Performance is an ideal crane for light vehicles, e.g. for use in the municipal sector. As standard it comes with everything required for tough daily duty: Know-how and leading technology from PALFINGER. This makes it safe and reliable and proves you with high efficiency for every job. Users can rely on it because the after-service is also right.
PRODUCT FEATURES
KTL
PRODUCT FEATURES
The right surface treatment is the foundation for durable and long-lasting surface protection. The components pass through the priming and painting process stages fully automatically. Through this innovative technology for surface coating, PALFINGER creates a quality standard that is usually only found in the automobile industry.
HOW IT WORKS
1. The crane components are cleaned of all impurities by means of cut steel shot blasting.
2. The components are degreased, rinsed, activated and coated with zinc phosphating in the individual immersion tanks.
3. After two additional rinsing processes, the surfaces are passivated as well as rinsed with ultra-pure water.
4. The electrostatic cathodic dip painting follows by immersing the crane components completely in the paint.
5. Excess paint is washed off in two additional operations with an ultra-filtration rinse.
6. Afterwards, the paint is cured at a temperature of 115 degrees for 1.5 hours.
7. At the end, the crane components are given a water-soluble, environmentally friendly two-component finish coat of paint by a painting robot.
PALTRONIC 50
PRODUCT FEATURES
With the PALTRONIC 50 and PALTRONIC 150, PALFINGER offers the latest control electronics for the series production crane. The most important safety and comfort functions include:
-
overload cut-off
-
stability control (HPSC)
-
High Power Lifting System (HPLS)
-
Active Oscillation Suppression system (AOS)
-
Dual Power System plus (DPS plus) in the fly jib insert
HOW IT WORKS
The PALTRONIC controls and monitors the crane.
-
Pressure sensors on the cylinders send information on the capacity utilisation of the crane to the PALTRONIC.
-
Position sensors send information on the position of the boom system, the slewing gear or the stabilizer support to the PALTRONIC. Based on the incoming signals, the PALTRONIC decides on shutting down or activating systems.
RADIO REMOTE CONTROL
PRODUCT FEATURES
Today, radio remote controls are often considered to be standard equipment when it comes to modern loader cranes. PALFINGER radio remote controls are equipped with a choice of a linear lever or cross lever and provide the greatest possible comfort of the operator. For cranes with PALTRONIC an LCD graphic display or 4.1 inch TFT- colour display informs the crane operator of the different operating conditions.
HOW IT WORKS
The remote control console (transmitter) is responsible for transmitting the commands made on the levers to the receiver. The receiver forwards the signals to the electronics, which convert them into crane movements by means of hydraulic control valves.
*Optional feature/country-specific-equipment
